A coffee bar cabinet for a Breville espresso machine must fit more than the closed appliance. It needs room for the grinder system, water-tank access, bean-hopper opening, portafilter rotation, milk pitcher, drip-tray removal, ventilation, cord route and one dry landing area.
The Breville name covers machines with very different footprints. On the current U.S. product pages reviewed August 18, 2026, stated widths range from 6.25 inches for the Bambino to 16.6 inches for the Oracle Jet. A cabinet described only as “Breville compatible” therefore tells you almost nothing until the exact model number is known.
Use the comparison below as a shortlist, then recheck the current official page and manual before buying furniture. Specifications, regional versions and product revisions can change.
Current Breville dimensions at a glance
| U.S. model | Model code | Official closed dimensions W × D × H | Published weight | Grinder arrangement | Cabinet implication |
|---|---|---|---|---|---|
| Bambino | BES450 | 6.25 × 13.5 × 12 in | Check current model page | Separate grinder required | Narrow machine, but the complete station is wider |
| Bambino Plus | BES500 | 7.5 × 13.5 × 12 in | 10.91 lb | Separate grinder required | Compact body with milk-pitcher working space |
| Barista Express | BES870 | 12.5 × 13.8 × 15.9 in | 22.09 lb | Integrated grinder | Taller body and hopper-access requirement |
| Barista Pro | BES878 | 13.5 × 13.9 × 13.5 in | 20.92 lb | Integrated grinder | Wider machine with removable hopper and rear tank |
| Barista Touch | BES880 | 12.4 × 12.8 × 13.4 in | 21.8 lb | Integrated grinder | Compact integrated footprint, but not a closed-bay appliance by default |
| Dual Boiler | BES920 | 15.9 × 14.7 × 14.9 in | 28.35 lb | Separate grinder required | Wide, heavy machine plus grinder and larger working zone |
| Oracle Jet | BES985 | 16.6 × 14.2 × 14.9 in | Check current model page | Integrated grinder and tamping | Broad machine requiring generous cabinet width |
These are manufacturer-listed product dimensions, not recommended cabinet-opening dimensions. They do not include the extra space needed to use and maintain the machine.
The current Barista Express page has appeared with conflicting dimension orders in indexed results, which is exactly why copying a third-party table is risky. This guide uses the current U.S. page’s explicit 12.5 × 13.8 × 15.9 in listing and still requires a final check against the page, manual and physical machine.
Choose by system type, not brand name
Breville machines fall into three practical cabinet-planning groups.
Bambino: narrow machine, separate grinder system
The Bambino and Bambino Plus save machine width. That does not automatically create a narrow coffee station. Espresso still needs a grinder, tamper or tamping area, milk pitcher, portafilter landing position and a place for used tools.
Place the grinder beside the machine rather than behind it. Side-by-side placement keeps the hopper accessible, shortens the grounds path and avoids reaching over a hot machine. Add the grinder’s full width and cord path to the 6.25- or 7.5-inch machine body, then preserve a dry working strip.
The Bambino’s portafilter and manual steam wand create side and front movement. The Bambino Plus adds hands-free milk texturing, but the pitcher still needs to sit correctly on the sensor and be removed without hitting the cabinet.
A slim cabinet works only when the whole Bambino system fits. If the grinder must live on another surface, the station is compact visually but fragmented operationally.
Barista series: integrated grinder, higher top-access demand
The Barista Express, Barista Pro and Barista Touch combine grinder and espresso machine. This can reduce the number of separate appliances, but it shifts the clearance problem upward.
Beans enter through a top hopper. The hopper lid must open, and some maintenance involves removing the hopper or accessing the burr area. Do not place a fixed shelf at the closed-machine height plus a token gap. Simulate filling beans, removing the hopper and cleaning around it.
The Barista Pro manual identifies a removable two-liter rear water tank, a locking removable bean hopper, a 360-degree swivel steam wand, a removable drip tray and a storage tray behind the drip tray. These details create four different directions of movement:
- upward for hopper access;
- rearward or upward for water-tank service;
- sideways and forward for the steam wand and milk pitcher;
- forward for the drip tray and storage tray.
An integrated grinder saves side width only if the cabinet preserves all four movements.
Dual Boiler and Oracle Jet: wide or heavy systems
The Dual Boiler is listed at 15.9 inches wide and 28.35 pounds before water, beans, cups or accessories. It also requires a separate grinder. The total station is therefore substantially wider than the machine body and places a larger load on the cabinet top.
The Oracle Jet integrates grinding and tamping, but its 16.6-inch published width makes it the widest model in this comparison. A wide machine reduces the side space available for a pitcher, knock box and dry landing zone even when the cabinet top itself looks generous.
For either group, check the cabinet maker’s written top and shelf load ratings. Do not infer load capacity from panel thickness or appearance. Include the filled water tank, grinder, stored cups and any replacement worktop in the load plan.
Compare a compact machine system with an integrated one
Illustrative category comparison created with OpenAI ImageGen. The machines are unbranded concepts, not drawings of specific Breville products.
The left bay demonstrates why a narrow espresso body can still require a broad station: the separate grinder, pitcher and portafilter consume the saved width. The right bay shows the integrated alternative: fewer separate appliances, but more machine width and overhead hopper access.
Neither arrangement is inherently better. Choose the configuration that fits the real cabinet while leaving a clear work sequence from grinding to tamping, brewing, steaming and cleanup.
Add five clearances to the published dimensions
Do not add one generic number to every side. Measure five functional clearances with the exact machine cool and unplugged.
1. Top refill and maintenance clearance
Open the bean-hopper lid. Remove the hopper if the manual allows. Lift or remove the water tank in the normal direction. Include the height of your hand and container while pouring beans or water.
The required bay height is the greatest of those movements or any greater manufacturer requirement—not the closed-machine height.
2. Front working clearance
Lock and unlock the portafilter, place the largest cup, remove the drip tray and access cleaning storage. The portafilter handle sweeps beyond the machine body. Preserve enough front depth that it does not project into a dangerous walking path.
The coffee bar cabinet depth guide explains how machine depth, plug bend and front work space combine.
3. Steam-wand and pitcher clearance
Swing the steam wand through its full normal range. Place and remove the filled-size pitcher without hitting a side wall. The steam path should not strike a shelf, door edge or stored paper product.
Use the exact manual for milk-texturing and purge steps. A general photograph cannot establish safe steam clearance for a specific model.
4. Rear service and cord clearance
Identify how the water tank, filter and cord are accessed. Keep the cord relaxed, visible and unpinched; keep the plug reachable. Do not push the machine backward until the cabinet crushes the plug or blocks service.
Use the coffee cabinet outlet and cord guide before deciding whether the cabinet can sit in front of an existing receptacle.
5. Heat and ventilation clearance
Follow the current manual for surface, ventilation and operating-position requirements. Do not assume that a coffee machine can run in a closed appliance garage because it physically fits.
The coffee cabinet ventilation guide provides the three-envelope test for static size, operating movement and heat/steam exposure.
Treat the portafilter as part of the footprint

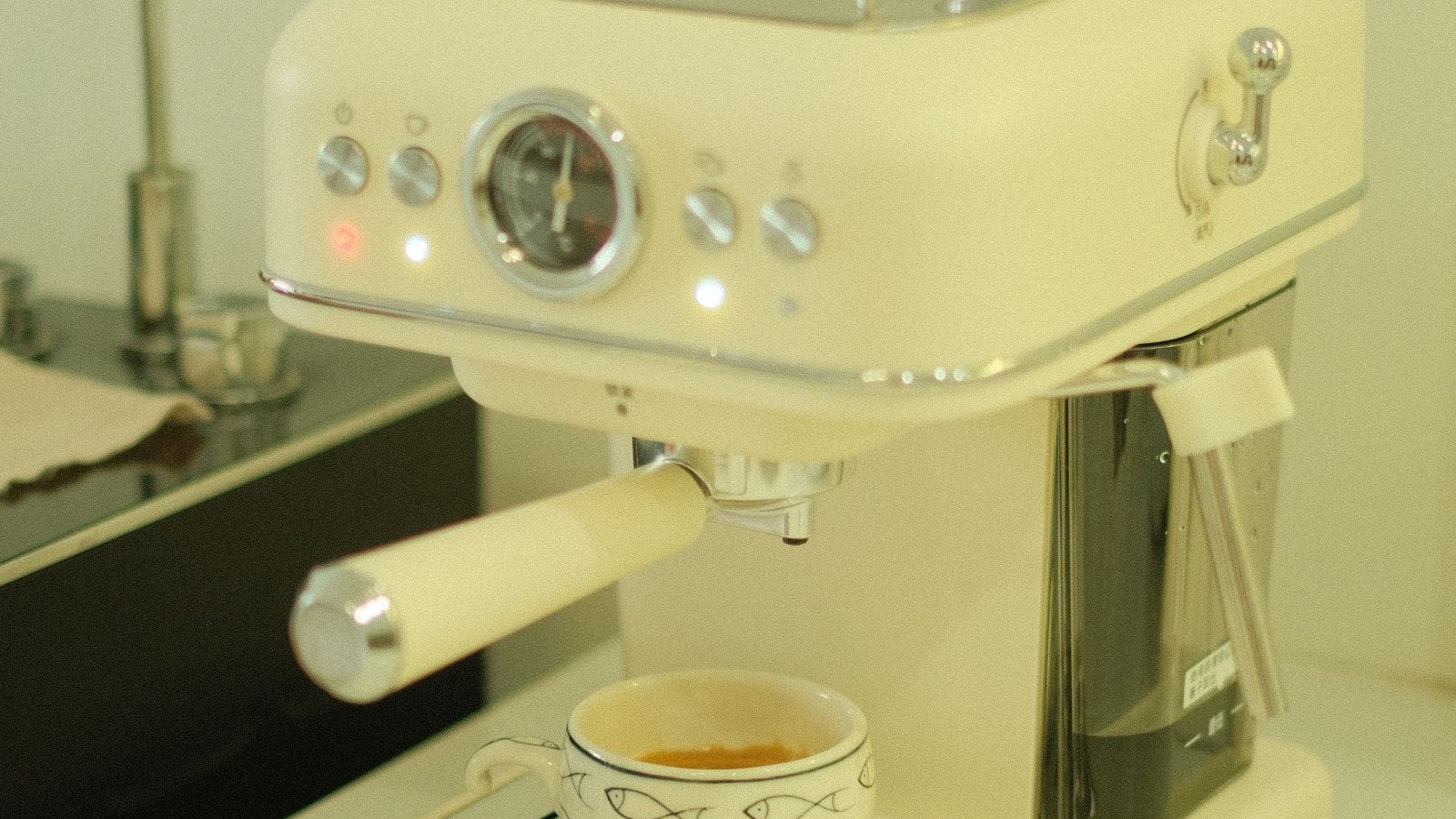

Real photograph by Ketut Subiyanto via Pexels. It demonstrates a removable portafilter and cleanup zone; the pictured equipment is not presented as a Breville model.
A product-width number stops at the machine housing. The portafilter does not. During dosing, tamping, locking, knocking out and rinsing, the handle moves between the grinder, machine and cleaning route.
Mark a parking spot for the portafilter when it is not locked into the group head. Do not balance it across the drip tray or let the handle project over the cabinet edge. A shallow drawer can store dry baskets and tools, but wet or coffee-covered parts should return to the cleaning route rather than disappear into closed storage.
For a Bambino system, the grinder-to-portafilter transfer is a major part of the layout. For integrated Barista and Oracle machines, preserve the space directly beneath the grinder outlet and the sideways movement needed to remove the portafilter cleanly.
Build a cabinet shortlist by machine family
For Bambino or Bambino Plus
Prioritize a cabinet wide enough for the separate grinder and a small working zone. A shallow cabinet may work if the 13.5-inch published machine depth, plug route and front handle movement all fit. Closed lower storage can hold filters, cleaning supplies and backup beans.
For Barista Express, Pro or Touch
Prioritize internal height above the hopper, rear-tank service and side room for the steam pitcher. Avoid a low fixed shelf directly over the machine. A broad open center with adjustable upper shelving is usually more adaptable than a tight hutch niche.
For Dual Boiler
Prioritize documented load capacity, broad top width and room for a separate grinder. The cabinet must remain stable with the filled machine and workflow forces. A light decorative console without a written load rating is a poor starting point.
For Oracle Jet
Prioritize width, front operating depth, hopper access and a clear milk station. The integrated system reduces separate grinder space, but its broad body leaves less side landing area. Test the complete setup with the largest milk pitcher and cup you use.
These are planning directions, not product endorsements. Use the complete coffee bar cabinet buying guide to compare furniture construction and placement, then browse the Coffee Bar Cabinets collection only after establishing the exact machine and required envelope.
Run a cold-machine cardboard test
Before ordering a cabinet:
- Reconfirm the model code on the machine label or order record.
- Recheck the current U.S. Breville page and manual.
- Tape the cabinet’s usable top or bay on an existing surface.
- Mark the closed machine dimensions at full scale.
- Add the actual grinder, knock box, pitcher and dry landing area.
- Open or remove the hopper and water tank.
- Rotate the portafilter and steam wand through their full movements.
- Pull the drip tray and cleaning storage forward.
- Trace the relaxed cord path to a suitable outlet.
- Confirm another person can pass while the machine is in its deepest working state.
Fail the candidate if any regular action requires tilting a full tank, scraping a cabinet wall, pulling the machine by its cord or removing a shelf every day.
Buying checklist
- [ ] Exact Breville model code and region confirmed
- [ ] Current official dimensions and manual saved
- [ ] Machine body fits with manufacturer clearance
- [ ] Separate grinder included where required
- [ ] Hopper and water tank open or remove normally
- [ ] Portafilter handle clears walls and traffic
- [ ] Milk pitcher and steam wand have full movement
- [ ] Drip tray and cleaning storage pull out
- [ ] Cabinet load rating covers filled equipment
- [ ] Plug and original cord remain accessible
- [ ] Heat and steam do not strike the enclosure
- [ ] One dry landing area remains empty
- [ ] Cabinet can be cleaned behind and around the machine
Frequently asked questions
What size cabinet do I need for a Breville Barista Express?
Start with Breville’s current U.S. closed dimensions of 12.5 × 13.8 × 15.9 inches for BES870, then add top hopper access, rear water-tank service, portafilter rotation, steam-pitcher space, cord clearance and the manufacturer-required operating clearance. Do not use the closed width as the cabinet width.
Will a Breville Bambino fit on a 12-inch-deep cabinet?
The current Bambino page lists the machine at 13.5 inches deep, so a 12-inch top would not support the full closed footprint. The plug and portafilter can require more depth. Use the exact machine and cabinet measurements rather than allowing the appliance to overhang.
Does the Bambino need a wider coffee bar than its 6.25-inch body?
Yes, for most espresso routines. It needs a separate grinder plus tamping, pitcher, portafilter and landing space. Plan the complete system, not the machine alone.
Can a Barista Pro sit under a fixed shelf?
Only if the current manual permits the operating position and the shelf leaves enough space to fill and remove the hopper, service the rear water tank, ventilate and clean the machine. Test those movements before installing the shelf.
Is the Dual Boiler too heavy for a sideboard?
It depends on the sideboard’s written load rating and construction. Breville lists BES920 at 28.35 pounds before water and accessories, and it still needs a grinder. Obtain the furniture maker’s rating rather than judging by appearance.
Are all Breville dimensions listed in width-depth-height order?
Breville labels technical specifications as W × D × H, but indexed and regional pages can differ or be revised. Verify the label, model code, units and current page immediately before purchase. When in doubt, measure the physical machine.
