There is no single standard set of coffee bar cart dimensions. The right width, depth and height come from four separate measurements: the cart's outside footprint, its clear usable worktop, the coffee system's largest operating position, and the space occupied by the user, doors and drawers while the station is in use.
Measure the routine before shopping. A machine that fits while closed may still need more height for an open head, more depth for a removable water tank, or more width for a portafilter, grinder and milk pitcher.
Coffee Bar Cart Dimensions: The Four Measurements You Need
| Dimension layer | What it includes | Why it matters |
|---|---|---|
| Cart outside size | Frame, top, posts, handles, rails and casters | Determines whether the furniture fits the room and delivery route |
| Usable worktop | Clear, level, supported area between obstructions | Determines whether all appliance feet and working items are supported |
| Equipment operating envelope | Open lids, tanks, handles, carafes, steam wand, grinder and cleaning movement | Determines whether the coffee routine can actually happen |
| Room use envelope | User position, door swing, drawer extension, chair movement and cup-carrying path | Determines whether the cart works when the room is active |
A good paper fit passes all four layers. If one fails, a larger cart, different machine arrangement or fixed coffee cabinet may be the better answer.
Start With the Cart's Outside Dimensions
Retailers normally list width, depth and height for the furniture's outside envelope. Confirm how the manufacturer labels the axes: one page may use length and width while another uses width and depth.
Include anything that projects beyond the top:
- push handles;
- rails or towel bars;
- corner posts;
- caster housings;
- overhanging shelves; and
- drawer or door hardware.
These parts matter in the room even when they do not support the coffee machine. Record the assembled dimensions, not only the shipping carton, and confirm the cart can pass through every doorway and turn on the route to its final position.

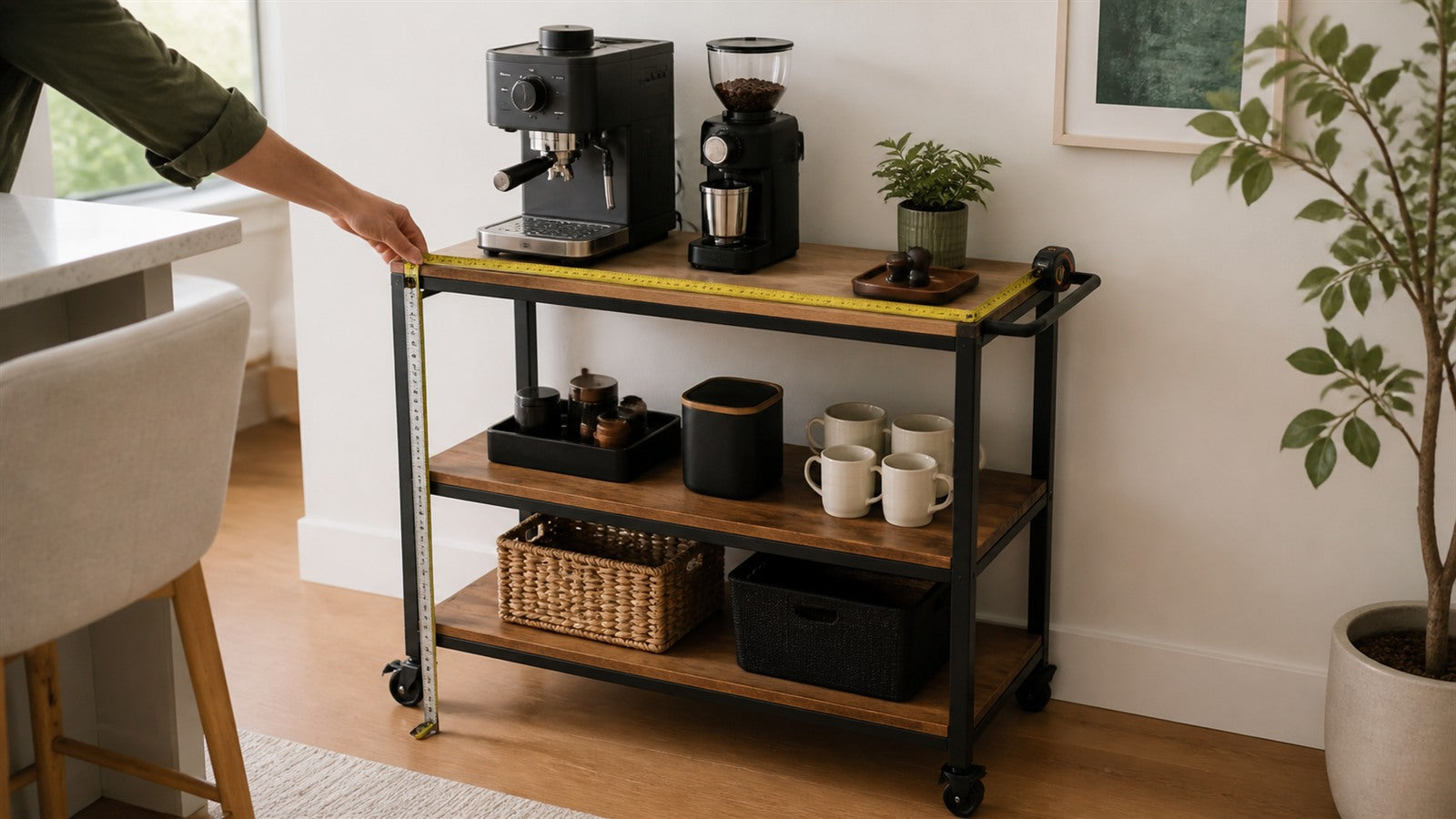

Measure the Clear Usable Worktop
The listed cart width is not automatically usable appliance width. Measure the clear, level surface between rails, lips, handles and posts. Verify that every appliance foot rests on the supported area.
If the top is removable, reversible or designed as a serving tray, read the furniture instructions. Do not assume a removable component is intended to support a working coffee appliance merely because it looks flat.
The usable worktop should hold the equipment plus one dry landing area. A narrow strip beside the machine only counts when it can hold the regular cup, milk pitcher or removed water tank without balancing on an edge.
BaristaNest product photograph, cropped for this guide. The photograph shows the difference between a furniture frame and its work surface; use the current product page and assembly information to verify actual dimensions and load limits.
Calculate Coffee Cart Width From the Widest Workflow Step
Do not add every accessory you own. Lay out only the items used during the largest regular step.
For a pod machine, that step may be opening the head and placing a mug. For pour-over, it may be kettle, dripper, server and scale. For espresso, it may be grinder, machine, portafilter movement and a milk pitcher.
Use this planning formula:
Required usable width = widest active appliance arrangement + dry landing area + any side movement required by the manuals and normal routine
The phrase “active appliance arrangement” matters. A tamper can live below the top between drinks, but a grinder used for every shot needs an accessible operating place. Decor does not belong in the formula.
An integrated espresso machine can reduce the number of separate appliance bodies, but it still needs side and front movements. Breville lists the Barista Express at 12.5 × 13.8 × 15.9 inches and 22.09 lb before its 67 fl oz tank, beans and working accessories are considered. Its portafilter and steam workflow extend beyond the closed rectangular body.
Calculate Coffee Cart Depth From Feet, Cup and Service Access
Depth is frequently underestimated because product photos are taken from the front. Begin at the wall or rear rail and follow the entire setup toward the user.
Include:
- rear water tank or cable relationship;
- the full appliance feet;
- machine body and drip tray;
- the regular cup or carafe position;
- front clearance for removing the drip tray or grounds bin; and
- any cart handle projecting behind or in front.
Use this planning formula:
Required usable depth = rear service requirement + supported appliance depth + front operating requirement
Do not push the machine against a wall simply to make the published depths appear equal. Follow the appliance instructions for placement and ventilation. Keep the cord from being crushed against a rail or routed through a wheel path.
Machine proportions vary. Nespresso lists the Vertuo Pop+ at 8.6 inches wide, 14 inches deep and 10.4 inches high. A machine can therefore look narrow from the front while still demanding a comparatively deep worktop.
Calculate Total Height in the Machine's Tallest State
Coffee cart height has two different meanings:
- the height of the worktop for the person using it; and
- the total vertical space needed by the cart and operating machine.
First test working height. Put the machine or a same-height box on a temporary surface. Rehearse loading, reading controls, tamping, placing cups, refilling water and removing the drip tray. The right height depends on the intended users and the task; a low storage trolley is not automatically a comfortable standing workstation.
Then calculate total height:
Total operating height = floor-to-worktop height + tallest machine position above the worktop
Use the tallest regular position, not the closed body. Keurig lists one K-Mini at 12.1 inches high and 16.8 inches with its handle open. That difference can decide whether a machine works below a shelf or upper cabinet.
Check pendant lights, wall shelves, cabinets, framed decor and anything else above the proposed cart. The machine must be refillable and cleanable without pulling a hot, loaded cart into the room.
Compare Real Cart Sizes Without Turning Them Into Standards
The following official furniture examples show the range of available footprints. They are not coffee-cart size standards or endorsements for a particular appliance.
| Example furniture | Published outside size | Published load information | What the example demonstrates |
|---|---|---|---|
| IKEA NISSAFORS | 19 7/8 × 11 3/4 × 32 5/8 in | 15 lb per shelf; 46 lb total | A narrow footprint can have limited individual shelf capacity |
| IKEA KUNGSFORS | 23 5/8 × 15 3/4 × 35 3/8 in | 22 lb per shelf | More depth and height may suit a work role, but its removable top still requires instruction review |
| IKEA BROR | 33 1/2 × 21 5/8 × 34 5/8 in | 110 lb maximum | A wider, deeper heavy-duty format occupies much more room and still needs surface-specific verification |
Current details are available on the official NISSAFORS, KUNGSFORS and BROR pages.
These examples answer an important question: a difference of four or ten inches changes the type of coffee system and room that can use the cart. They do not prove that any specific machine belongs on any of these products.
Match the Dimensions to the Coffee System
Pod machine cart
Prioritize open-head height, water refill, capsule storage and one cup landing area. A narrow machine may reduce required width, but rear tanks and deep bodies can still control depth.
Drip coffee cart
Include the complete carafe path, filter basket, water filling and any grinder used before brewing. Moccamaster lists the KBGV at 14 inches high, 12.75 inches wide and 6.5 inches deep, but the carafe and top-fill routine create an operating space larger than the closed body alone.
Pour-over cart
Measure the kettle, scale, dripper and server in the actual brewing arrangement. If the kettle is electric, include its base and original cord. The system may need more lateral landing space than its stored arrangement suggests.
Espresso machine cart
Include machine, grinder, portafilter rotation, tamper or distribution step, cup, milk pitcher, steam wand and cleaning movements. Also calculate the loaded weight of water and beans. A dedicated espresso-cart guide will address this system in more detail.
Real photograph by Charlotte May on Pexels, cropped under the Pexels license. It illustrates why the full system can be wider than the machine body; it is not used as a measurement source.
Add the Room Use Envelope
After choosing a promising cart size, tape its outside footprint on the floor. Add separate tape lines for a projecting handle and the machine's largest open position. Then use the room normally.
Test:
- opening the refrigerator, dishwasher and nearby cabinets;
- extending every drawer;
- pulling dining chairs out;
- walking past with a full mug;
- reaching the outlet and plug;
- removing the water tank and drip tray; and
- moving the unplugged cart to its actual cleaning location.
Do not rely on a universal walkway number when the room has doors, chairs and turning points that create its own geometry. A full-size tape test shows whether the chosen footprint is workable in that specific home.
Account for Handles, Wheels and Base Shape
Two carts with the same top dimensions can occupy the floor differently. A side handle can make the cart wider than the worktop. Angled legs, wheel guards or casters can project beyond the frame. A narrow base under a broad top may feel different under sideways espresso forces than a base aligned with the top.
Record the maximum outside width and depth at any height, not only the tabletop. Lock casters as the manufacturer directs and test the loaded cart on the actual floor. The cart should remain parked during brewing.
Check Dimensions and Loads Together
A large enough surface can still be insufficiently rated. Calculate the working load on the top:
- dry machine;
- full water tank;
- beans in a hopper;
- grinder, kettle or frother;
- cup, carafe and milk pitcher; and
- anything stored on the same supported surface.
Compare that total with the published top or individual shelf rating. A whole-cart maximum does not necessarily describe the top, and one manufacturer's rating never transfers to a similar-looking product.
A Fill-In Coffee Cart Measurement Worksheet
Use one line for every value and keep the units consistent.
Furniture candidate
- outside width: ___
- outside depth including handle: ___
- floor-to-worktop height: ___
- clear usable top width: ___
- clear usable top depth: ___
- top or shelf load rating: ___
Coffee system
- widest active arrangement: ___
- rear service requirement: ___
- supported machine depth: ___
- front operating requirement: ___
- tallest open machine height: ___
- complete filled top load: ___
Room
- clear wall segment: ___
- nearest door or drawer extension: ___
- chair movement: ___
- user standing position: ___
- outlet and original cord relationship: ___
- delivery doorway and turn: ___
Reject a candidate when a required value exceeds the corresponding usable value. Do not “borrow” unsupported inches from a rail, overhang or adjacent walking path.
Common Coffee Cart Dimension Mistakes
Comparing cart width with machine width only
This ignores grinders, cups, side movements and the landing area. Compare the cart's clear surface with the widest active workflow.
Treating machine depth as the back-to-front requirement
Rear water access, the full feet, cup position and tray removal can require more room than the closed body.
Adding closed machine height to cart height
Use the tallest open or refill position, especially below shelves and cabinets.
Measuring an empty room
Open doors, drawers and chairs during the tape test. Include the person making coffee.
Ignoring the delivery route
An assembled cart may fit its wall but fail a doorway or turn. Check the package and assembly route before ordering.
Coffee Bar Cart Size Checklist
Before buying, verify:
- current official dimensions for every appliance;
- closed, open, refill and cleaning positions;
- clear supported worktop between obstructions;
- outside cart size including handles and casters;
- total operating height;
- widest active workflow;
- deepest service and cup position;
- comfortable worktop height for intended users;
- top and individual shelf load limits;
- room doors, drawers, chairs and traffic;
- accessible outlet and original cord path; and
- delivery, assembly and cleaning routes.
If you are still choosing a furniture type, begin with How to Choose a Coffee Bar Cart for Your Home. For a limited room, use the Small Coffee Cart Ideas for Kitchens and Apartments guide. After the numbers pass, compare current formats in the Coffee Bar Cart collection.
Frequently Asked Questions
What are standard coffee bar cart dimensions?
There is no universal standard for a home coffee bar cart. Furniture examples span very different widths, depths, heights and load ratings. Calculate the required usable surface and room envelope from the exact coffee system.
How wide should a coffee cart be?
It should be at least as wide as the widest active appliance arrangement plus a dry landing area and required side movement. Measure between rails and posts rather than relying on the listed outside width.
How deep should a coffee cart be?
Depth must support all machine feet and allow the rear service relationship, cup or carafe position, and front cleaning access. A machine's published body depth is only the starting value.
How tall should a coffee bar cart be?
Choose a worktop height that is comfortable for the intended users and routine. Then add the machine's tallest open position to confirm total clearance below shelves or cabinets.
Can the machine overhang the cart?
Do not assume an overhang is acceptable. All appliance feet should rest on the supported surface, and placement must follow the appliance and furniture instructions. Choose a deeper top when the required support does not fit.
Do I include the cart handle in its width?
Yes for room planning. Any handle, rail, wheel guard or caster that projects beyond the top belongs in the outside footprint, even when it does not count as usable worktop.
The correct coffee bar cart dimensions are the numbers that survive the full routine: equipment open, cup in place, user standing, doors moving and the cart parked securely. Measure that moment, not the empty furniture photo.
