Coffee Bar Cabinet Shelf Spacing Guide for Machines, Mugs and Syrups

Good coffee bar cabinet shelf spacing is based on usable clearance, not equal-looking rows. Measure from the top of the lower shelf to the underside of the shelf above, then add the space required to open, lift, pump or remove each item. A machine that is 13 inches tall may need substantially more than 13 inches of working clearance, while a 4-inch mug may need only a 5- to 6-inch compartment when stored in a single row.

The most reliable layout starts with the largest operating envelope—the coffee machine—then assigns shorter zones to mugs and small tools, and a dedicated tall zone to syrup bottles with pumps. Use the ranges below only as mockup starting points; your actual items decide the final shelf positions.

Quick shelf-spacing plan

These are clear inside dimensions. If a product page lists shelf-to-shelf spacing, confirm whether that number includes the thickness of the upper shelf.

Measure clear height, not shelf pitch

Two measurements that sound similar can produce different results:

• Shelf pitch: from the top surface of one shelf to the top surface of the next.
• Clear height: from the top surface of the lower shelf to the underside of the shelf above.

Clear height is the space the object can actually occupy. A one-inch-thick upper shelf reduces a 13-inch shelf pitch to about 12 inches of usable clearance. Face frames, door rails, lighting channels and shelf lips can reduce the opening further even when the cavity behind them is taller.

Record the smallest opening an item must pass through, not just the tallest point inside the cabinet. This matters with framed doors and shelves that sit behind a lower front rail.

Use the four-part clearance formula

For each zone, calculate:

Object height + operating movement + hand space + future tolerance = required clear height

The four parts do different jobs:

1. Object height is the item at rest: machine, mug stack, bottle or bin.
2. Operating movement is the vertical travel of a lid, water tank, pump, hopper cap or the item being lifted.
3. Hand space is room for fingers and knuckles to complete the action without scraping the upper shelf.
4. Future tolerance is a modest allowance for replacing a mug, bottle pump or organizer—not a large empty gap “just in case.”

If the action moves sideways or backward, also check coffee bar cabinet depth. Shelf height cannot fix a rear water tank trapped against the wall.

The illustration shows why the empty space above each object has a purpose. The machine needs access to its top components, the mug needs a lift path, and the bottle pump needs room for a hand and its downward stroke. Equal compartments would not serve these three actions equally well.

Plan the machine zone first

The machine creates the largest and least flexible clearance requirement. Measure it before deciding how many shelves the cabinet can hold.

Espresso machines

Breville lists the Barista Express at 15.9 inches high. That closed dimension is only the starting point: the machine also has a top bean hopper and a removable water tank. If a shelf sits immediately above it, test whether you can remove the hopper lid, add beans and handle the tank without dragging the machine forward.

A removable shelf above the machine can be useful for future flexibility, but it should not become a reason to crowd the appliance today. Follow the appliance manual for operating, ventilation and servicing requirements. For the full footprint, use our espresso-machine cabinet guide.

Pod and capsule machines

Keurig lists the K-Elite at 13.1 inches high with a removable 75-ounce reservoir. Nespresso lists the Vertuo Next at 12.4 inches high and notes that it accommodates travel mugs up to about 7 inches. These facts create at least three separate vertical checks:

• the brewer head can open fully;
• the water reservoir can be removed or filled;
• the tallest regular cup can enter and leave the cup platform.

Do not select a 14-inch cavity simply because a 13.1-inch machine is technically shorter. Open the brewer and rehearse the reservoir path. Our Nespresso and Keurig guides cover model-specific layout questions.

Drip coffee makers

Measure the machine closed, then open the brew basket and reservoir lid. Lift out the filter basket and remove a full carafe. Rear-fill machines often need both vertical and forward clearance; a shelf may clear the lid but still force an awkward pouring angle.

If every refill requires moving the machine, treat the shelf position as failed rather than “close enough.” Repeated dragging is friction in the daily routine and increases the chance of drips behind the cabinet.

Space mug shelves around the way you store mugs

Mug capacity in ounces does not predict height reliably. IKEA lists one 8.5-ounce FÄRGRIK mug at 4 inches high, while other shapes with larger capacities can be shorter or similar. Measure your tallest everyday mug, not an assumed “standard mug.”

One row of mugs

For a 4-inch mug, begin by mocking up 5 to 6 inches of clear height. The extra space lets the mug rise above a small shelf lip and clear the upper shelf without a hard tilt. If the shelf is deep, confirm that your hand can grasp the rear mug without knocking the front row.

Stacked mugs

Stack only mugs designed or proven stable in that position. Measure the actual stack on a flat surface, then add room to lift the top mug without scraping. More vertical capacity is not automatically better: a tall stack can be unstable and makes the lower mug inconvenient.

If you own many short mugs, a removable shelf insert may create a second level without forcing the cabinet’s main adjustable shelf into a permanently short position.

Hanging mugs

Measure from the underside of the hook or rail to the bottom of the hanging mug, including the motion needed to angle the handle on and off. Keep the hanging mug clear of the machine’s steam, hot surfaces and opening lid. Hooks also introduce hardware and load limits, so follow the organizer and cabinet instructions rather than assuming the shelf underside can accept screws or weight.

Give syrup pumps their own operating height

Syrup bottles are a common reason a photo-perfect shelf fails in use. A bare bottle may fit while the installed pump does not.

Monin’s official pump page confirms that its 750 mL glass-bottle pump is model-specific and dispenses 1/4 ounce per press, but it does not provide a universal assembled height. That is a useful warning: capacity and bottle category are not enough to set shelf spacing.

Measure this way:

1. Install the actual pump on the actual bottle.
2. Measure from the shelf surface to the highest point with the plunger at rest.
3. Press the pump fully and observe the hand and knuckle path.
4. Set a temporary “ceiling” above it and repeat several presses.
5. Add clearance until the pump operates naturally without bending the spout or touching the ceiling.

If the bottles are used daily, keep them upright and operable in place. If they are only backups, a lower closed compartment without pumps may use space more efficiently. Never force a pump sideways to make it fit; use a pour spout, move the active bottle to an open counter zone, or raise the shelf.

Fixed shelves and adjustable shelves serve different jobs

Adjustable shelves are valuable because a coffee setup changes. IKEA describes BESTÅ shelves as adjustable and its related cabinet as including multiple adjustable shelves; HAVSTA guides distinguish adjustable shelves from fixed ones. The important lesson is not to copy those products, but to verify the furniture you are considering.

Before purchase, ask:

• Which shelves are adjustable?
• What is the hole spacing or adjustment increment?
• Can a shelf be removed completely?
• Does a fixed shelf divide the only machine-height bay?
• What is the stated load per shelf?
• Does changing a shelf position affect doors, hinges or drawers?

Shelf position and shelf load are separate constraints. Moving a shelf to create the perfect cavity does not increase its capacity. Put heavy appliances only on surfaces the manufacturer identifies as suitable, and follow all stability or anchoring instructions.

Allocate height by frequency, not visual symmetry

Once the machine bay is fixed, distribute the remaining space by use frequency:

• Primary reach zone: daily mugs, beans or pods, scale and one or two active syrups.
• Secondary zone: weekly tools, alternate cups, tea and cleaning supplies.
• High or low backup zone: unopened filters, seasonal cups and refill bottles.

The exact reach zone depends on the users and the approach to the cabinet. If someone uses the station seated or has limited reach, test that position directly. Accessibility reach-range documents can inform the questions you ask, but a generic chart does not prove a private home setup works for a particular person.

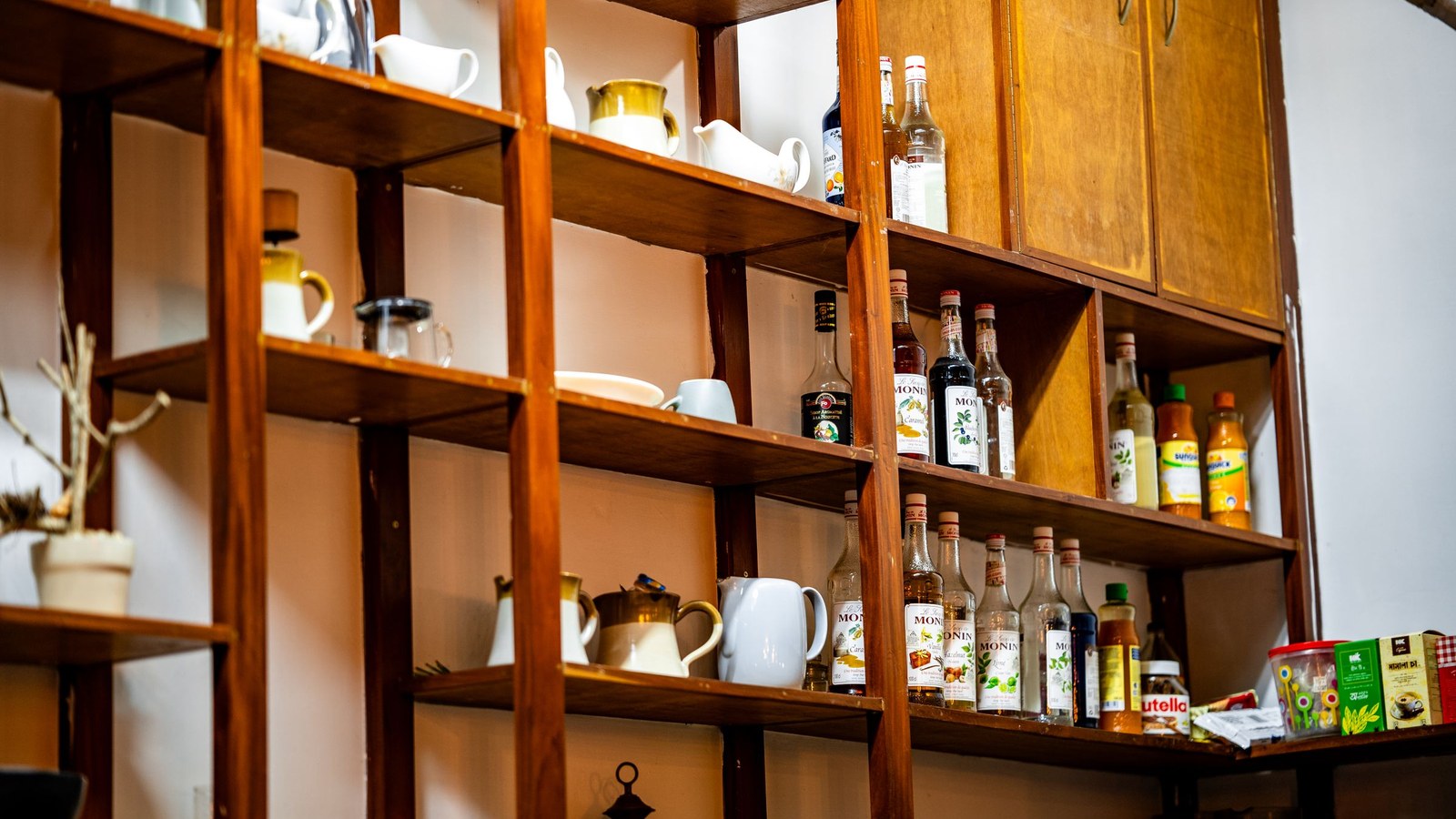

This commercial workspace is useful as a visual observation, not a home template. Tall jars and bottles occupy taller zones while cups and small tools use shorter spaces. It also shows the cost of crowding: when many categories share one visual field, access and cleaning can become harder. A home station should keep only the daily set in the easiest zone.

Build a shelf schedule before moving any shelf

Create one row for each planned compartment:

Add the required clear heights, then add every shelf’s thickness. Compare that total with the actual inside height of the cabinet. If it does not fit, do not shave every gap equally. Remove a low-priority shelf, move backup supplies to a drawer, or keep the machine in an open bay.

For a complete cabinet measurement sequence, see How to Measure for a Coffee Bar Cabinet. If you are still choosing the worktop position, settle the coffee bar cabinet height before finalizing upper shelves.

Run a cardboard-ceiling test

Before drilling shelf-pin holes or ordering a fixed hutch, simulate the upper shelf with a rigid piece of cardboard held securely at the proposed height. Do not place cardboard against a hot or operating appliance; perform the test with equipment off and cool.

Run the complete dry routine:

1. Open the machine and remove its tank, basket or hopper lid.
2. Lift a mug from the back of the shelf.
3. Press every active syrup pump fully.
4. Pull bins forward without unloading them.
5. Repeat with the largest cup and newest supply bottle.

Reject the spacing if you must tilt a filled container sharply, scrape your knuckles, bend a pump spout, move the machine for routine refilling or unload a bin to remove it.

Final shelf-spacing checklist

• [ ] I measured clear height, not top-to-top shelf pitch.
• [ ] I included shelf thickness, frame rails and lighting hardware.
• [ ] I measured the machine both closed and during every opening action.
• [ ] I used the tallest everyday mug and a stable real stack.
• [ ] I measured syrup bottles with the actual pumps installed.
• [ ] I allowed room for the full pump stroke and my hand.
• [ ] Daily items occupy the easiest reach zone.
• [ ] I identified which shelves are fixed, adjustable or removable.
• [ ] I checked the manufacturer’s shelf-load and stability instructions.
• [ ] A complete dry routine passed without moving the machine.

If you have not chosen the furniture yet, start with the complete coffee bar cabinet buying guide to compare construction, doors, load and placement. Once these checks pass, compare coffee bar cabinets whose shelf structure matches your schedule. Choose the cabinet after the objects and actions fit—not before.

Frequently asked questions

What is a good distance between coffee bar shelves?

There is no single distance for every zone. A row of 4-inch mugs may work with roughly 5 to 6 inches of clear height, while machines and pumped syrup bottles need their measured operating envelope. Use the tallest object plus its action and hand space.

Is 12 inches enough for coffee bar shelves?

It can be generous for many mugs and too short for many machines or pumped bottles. Twelve inches is useful only after you confirm whether it is clear height and test the specific object’s opening or removal path.

How much room should be above a coffee machine?

Follow the model manual and measure the appliance fully open. Add room to remove the water tank, open the hopper or lid and use your hand naturally. The manufacturer’s closed height is not a complete clearance requirement.

Should mugs be stored above the coffee machine?

They can be if the shelf does not block machine access, is within comfortable reach and is protected from excessive heat or steam according to the appliance instructions. If the machine needs frequent top access, place mugs beside it instead.

Are adjustable shelves worth it in a coffee cabinet?

Usually yes for mug, bottle and supply zones because those items change. The machine platform and structural shelves still need appropriate load capacity and stability; adjustability does not replace those requirements.

Continue planning storage

After shelf spacing, decide what belongs behind doors and what belongs in drawers. Our drawer storage-zone guide separates daily tools, refills and cleaning supplies so the open shelf does not become the default home for everything.
