A 36-inch-wide wall is enough for a complete coffee bar, including a compact machine, a useful landing zone and storage. It can also support a compact espresso machine plus grinder. The design only works when those functions receive separate space. If every extra inch becomes another appliance or display jar, the station will feel as cramped as a smaller one.
The best default is one primary brewing system, one companion item and one continuous area for cups, dosing, refilling and wiping. Treat 36 inches as a total planning envelope, not as 36 inches of display space.
Measure More Than the Wall Width
Measure the clear wall at the floor, countertop height and proposed shelf height. Use the smallest number. Record trim, baseboards, wall irregularities and the full projection of any nearby door casing.
Then measure the room around it:
- cabinet depth and countertop overhang;
- clear route in front of the station;
- nearby door, drawer and appliance swings;
- outlet location and plug depth;
- height below shelves or wall cabinets;
- the widest mug, pitcher and tool used during brewing.
A nominal 36-inch cabinet is not proof of fit in a 36-inch opening. Confirm the assembled outside dimensions, installation tolerance and countertop detail with the cabinet supplier or installer.
Measure Equipment in Motion
Closed dimensions are only a starting point. Make a cardboard block at the exact width, depth and height of each appliance, then simulate the movements the product needs:
- open the bean or capsule lid;
- remove and refill the water tank;
- insert and rotate the portafilter;
- move a pitcher around the steam wand;
- pull out the drip tray or used-capsule container;
- lift off a grinder hopper or grounds cup;
- unplug the machine without moving another appliance.
The Breville Bambino is listed at 6.25 inches wide, 13.5 inches deep and 12 inches high. The Baratza Encore ESP is listed at 13 x 15 x 34 cm, or roughly 5.1 x 5.9 x 13.4 inches. Those compact closed dimensions make a machine-and-grinder layout plausible, but the operating envelope remains larger than the sum of the product widths.
Start With a 36-Inch Allocation
The diagram shows planning bands, not code clearances or universal product requirements. Its purpose is to stop small objects from quietly consuming the work zone.
Layout A: one machine and a large flexible zone
Use 2 inches as combined edge and installation allowance, approximately 7 inches for a narrow machine and 27 inches for landing, preparation and a small tray. The exact machine may require more side or rear space.
Layout B: compact espresso machine and grinder
Use 2 inches for combined edges, about 7 inches for the espresso machine, 5 inches for a compact grinder and 22 inches for active work and operating movements. Some of that active space sits in front of the equipment rather than forming a perfectly empty vertical band.
Layout C: machine and countertop organizer
Use 2 inches for combined edges, about 9 inches for a capsule or coffee machine, 9 inches for a low organizer and 16 inches for cup landing and refilling. Put backstock below so the organizer does not grow across the counter.
Draw your own version with the current product dimensions. Do not force a machine into the example numbers.
Layout 1: One Machine With a Generous Landing Zone
One machine plus open counter is the easiest 36-inch coffee bar to share and maintain. Put the machine near one end, provided its controls, tank and cord remain accessible. Keep the middle open for the cup, scale, filter or water pitcher. A small tray at the far end can hold sugar or two daily canisters.
This layout supports drip, capsule or manual brewing. A tall drip machine may need more overhead room than a compact espresso unit. The Breville Precision Brewer, for example, is listed at 15.7 inches high, so a shelf that works above a short capsule machine may block its lid or refill motion.
Do not center the machine automatically. An offset position usually creates a larger, more useful landing area than two narrow strips on either side.
Choose this layout when different people use the station, when guests serve themselves or when cleanup speed matters more than permanent equipment display.

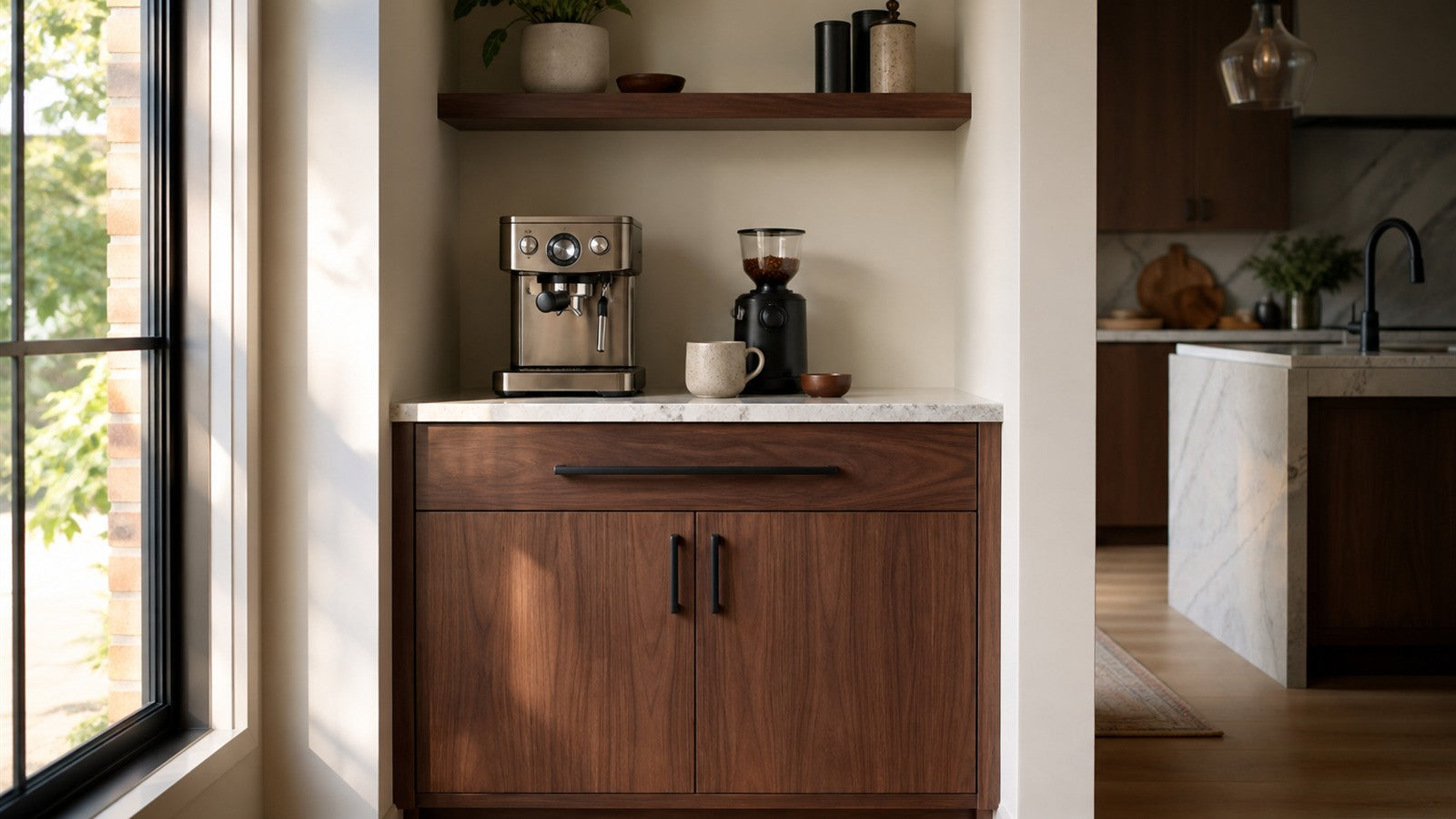

Layout 2: Compact Espresso Machine Plus Grinder
Thirty-six inches is a practical width for a compact espresso workflow. Put the machine on the side that gives the steam wand and portafilter the clearest movement. Place the grinder on the opposite side. Preserve the center and front counter for weighing, dosing, tamping and receiving the finished cup.
Store these tools in the top drawer when not in use:
- tamper and dosing funnel;
- scale and timer;
- milk pitcher;
- cleaning brush and cloth;
- spare baskets and small parts.
The grinder must have enough height to remove its hopper and enough lateral space to lift out the grounds cup. Check brew compatibility as well as size. The Fellow Ode Gen 2, for example, has a compact 105 mm width but is explicitly designed for brewed coffee rather than espresso. A physically small grinder is not automatically the right grinder.
Avoid putting a knock box, bean vault, kettle and decorative sign into the center. They erase the advantage of the wider station. Keep one active workflow on the counter and move occasional tools below.
Layout 3: Machine Plus Low Countertop Organizer
A low organizer works when it shortens a daily task without blocking the machine. It can hold a small rotation of capsules, spoons, tea packets or filters. Keep it below hand height and outside the water-tank, lid and cord paths.
A Nespresso Vertuo Pop+ is listed at 8.6 inches wide, 14 inches deep and 10.4 inches high. Its removable water tank and operating top still need access. Place the organizer only after those movements have been tested.
Use drawers for unopened capsule sleeves, bulk sweeteners and backup filters. The visible organizer should hold approximately one week of active supplies rather than the full inventory. This keeps the 16-inch landing band stable instead of allowing storage to expand until it touches the machine.
Choose this layout for a capsule-based routine, mixed coffee and tea service or a guest station where simple choices should remain visible.
Choose Cabinet Depth by Projection and Support
A 36-inch base cabinet can be shallow or standard depth. IKEA currently lists a 36 x 14 3/4 x 30-inch shallow SEKTION frame and a 36 x 24 x 30-inch standard-depth frame. These listings show that both formats exist; they do not establish which one fits your machine or room.
Choose a shallow cabinet when the coffee bar borders a dining path, hallway or compact breakfast area. Verify that all machine feet remain fully supported and that the drip tray, handle and cord are not precariously close to an edge.
Choose standard depth when the appliance is deep, the room has generous circulation or you want full-depth drawers. Measure the total projection from the wall to the countertop front, including handles. A deeper cabinet that narrows the route can create more daily friction than the extra storage solves.
Protect the Route in Front
Measure the clear path with chairs occupied, cabinet doors open and the deepest appliance in place. Do not use the 36-inch wall width as a substitute for this front-to-back measurement.
The U.S. Access Board describes a 36-inch minimum continuous width for an accessible route under applicable ADA standards. That is not a universal rule for every private home coffee bar. It is a useful reminder that a cabinet should not casually consume a route that a person or mobility device needs. Check the requirements that apply to the actual building and jurisdiction.
If two people must pass behind the user, complete a real movement test. One person should prepare a drink while another walks by, opens the nearest door and pulls out a chair. Reduce cabinet depth or change locations if routine movement requires turning sideways around hot coffee.
Put Storage Above and Below the Right Tasks
Use the top drawer for tools needed during brewing. Use deeper lower storage for coffee bags, capsule sleeves, spare mugs and cleaning supplies. Separate cleaning products from food-contact items and follow their labels.
A shallow shelf above can hold light mugs, filters or one small canister. Keep it outside the opening path of the machine and low enough for comfortable reach. Heavy jars and stacks of mugs belong lower.
Wall-mounted cabinets and shelves must be anchored for the actual wall construction. Follow the product system's instructions and rated load. Do not assume a decorative floating shelf can carry dense dishware because it looks substantial in a photograph.
Plan the Outlet and Cord Path
Each appliance cord should reach a receptacle without crossing the landing area, touching a hot surface, dangling over an edge or being pinched behind the machine. Keep the plug accessible for cleaning and service.
CPSC guidance warns about extension-cord overload and deficient cords. A permanent coffee bar should not depend on an improvised extension-cord route. Follow appliance instructions and applicable electrical requirements; ask a qualified electrician to assess new or relocated receptacles and required protection.
Do not drill for shelves, rails or cabinets until wiring and plumbing locations are understood. The cleanest visual plan is not worth creating a hidden electrical or structural problem.
What a Real Coffee Station Shows
Ramon Clemente's real coffee-station photograph on Pexels shows how several visible groups can still read as one station: machines form one group, cups another and jars a third. Repetition of materials and controlled spacing create order.
The photo also shows why display density must be edited. Multiple machines, cups and jars can consume a surface quickly. Use the image to study grouping and shelf balance, not to estimate inches from perspective. Your full-scale layout remains the dimensional test.
Run a Full-Scale Mockup
Before ordering the cabinet or drilling the wall:
- Tape the narrowest 36-inch envelope on the wall and floor.
- Mark the cabinet depth and countertop overhang.
- Build boxes at the exact machine and grinder dimensions.
- Add the plug, cord bend, portafilter handle and steam-wand movement.
- Mark the proposed landing zone with a different tape color.
- Place the widest cup, pitcher and active organizer inside the plan.
- Simulate brewing, refilling, emptying and wiping.
- Open nearby doors and have another person walk past.
- Remove any item that must move before every drink.
The station passes when one drink can be made and the counter can be wiped without relocating unrelated objects.
Common 36-Inch Coffee Bar Mistakes
Adding a third appliance because it fits on paper
Closed widths do not include hands, doors, handles and work. Use the extra width to separate tasks.
Splitting the landing zone into narrow leftovers
One continuous area is more useful than two small gaps. Offset the machine to create it.
Choosing cabinet depth only for storage
Measure the route in front. A shallow cabinet with disciplined drawers may outperform a deeper cabinet that blocks circulation.
Filling shelves with daily heavy items
Keep dense jars and mug stacks low. Use overhead storage for light, visible and occasional items.
Letting the organizer expand
Set a fixed organizer footprint and refill it from backstock below. Do not store every capsule or accessory on the counter.
Treating power as a finishing detail
The outlet and cord route affect machine placement. Resolve them before cabinetry and shelving.
Frequently Asked Questions
Is 36 inches wide enough for an espresso machine and grinder?
Yes, for many compact combinations. A roughly 6- to 8-inch machine and 4- to 6-inch grinder can leave substantial nominal width, but you must test the portafilter, steam wand, hopper, tanks, cords and active work area at full scale.
What is the best layout for a 36-inch coffee bar?
For maximum flexibility, place one machine at an end and preserve a large continuous landing zone. For espresso, put the machine and grinder on opposite sides with the center and front kept open.
Should a 36-inch coffee bar use a shallow or standard-depth cabinet?
Use shallow depth when circulation is tight and the appliance remains fully supported. Use standard depth for deeper machines and larger drawers when the room can absorb the projection. Measure the complete cabinet, top, handles and cord space.
How much empty counter should be left?
There is no universal number. The example layouts protect 16 to 27 inches of nominal flexible space, but your required area depends on the cup, pitcher, scale, water tank and operating movements. Test the real routine.
Can shelves go directly over the machine?
Only when the machine can open, refill, vent and be removed for service without striking the shelf. Follow the appliance and shelf instructions, and keep heavy storage lower.
Does the route in front need to be 36 inches?
Accessible routes covered by ADA standards generally require 36 inches of continuous clear width, with defined exceptions. Private residential conditions and local rules differ. Preserve practical circulation and verify the requirements for the actual project.
Final Recommendation
Use the 36-inch wall to create separation, not accumulation. For the easiest station, install one compact machine, a large landing zone, a top tool drawer and one shallow shelf. For espresso, add one compatible grinder and keep the center clear. For capsules, use one low organizer and store backstock below.
The successful 36-inch coffee bar is the one that stays usable after the styling objects are removed: the cup lands safely, every lid and tank opens, the cord reaches cleanly, another person can pass and the counter can be wiped in one motion.
